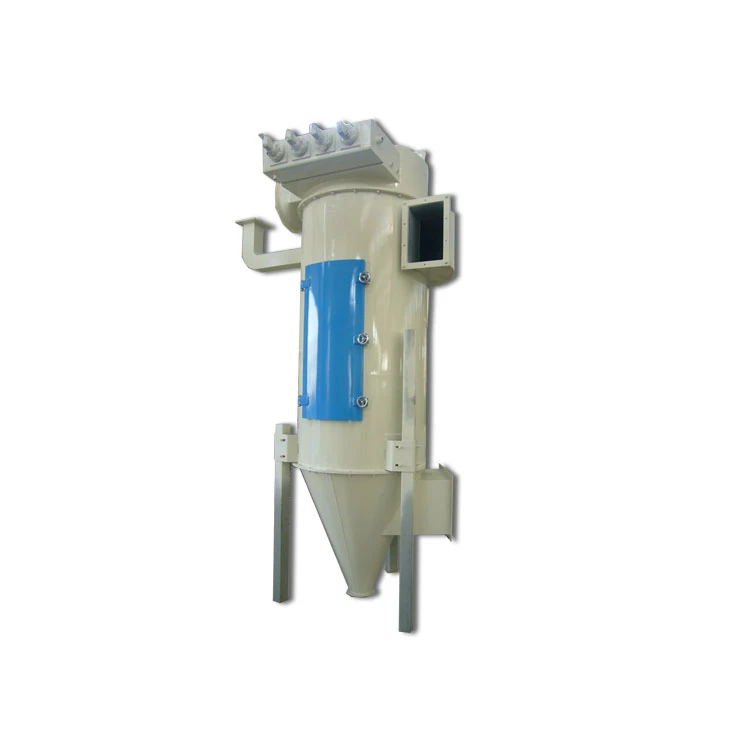

Пилозбірник TBLMY

Система пилозбірника

Пилоуловлювач високого тиску TBLMY

Features: With flat filtering envelopes, compact structure and small footprint.

Application: Dust collection on conveying equipment.

Робочий тиск повітря{{0}}: 0,2-0,4 МПа

Площа фільтрації (опціонально): 5,6 м², 10.5m², 17.5m², 25.2m², 36.4m², 53.2m², 75.6m², 109.2m².

Застосування та адаптивність

TBLMy Jet Filter Dust Collector belongs to a bag-type, low-pressure reverse air jet, impulse dust collector, featured by reliable performance, high efficiency dust collecting, low discharge concentration, easy operating and maintenance. It is applicable for dust control in industries of cereals and feed processing, machinery, metallurgy, building materials and cement, and dust cleaning or recycling and filtering in pneumatic conveying or aspiration duct collecting.

Особливості

This product is featured of a cyclone dust collector. The dust-containing air enters the box tangentially and is separated by revolving; large sized dust is settled firstly, small sized dust is filtered through a filtering sleeve so as to improve the service life of the sleeve;

A quick mounting and dismounting mechanism manufactured with patent technology for cloth sleeve is applicable for improving operation environment and work efficiency;

Електромагнітний клапан типу TDFD призначений для легкого монтажу та демонтажу, і для цього один електромагнітний клапан розпилює кілька рукавів одночасно;

Імпульсний контрольний інструмент типу TKZM використовується для багатоконтурного регулювання з хорошою регульованою, точністю та стабільною продуктивністю.

Існують механізми видалення пилу з конічним дном і плоским дном, щоб оптимізувати механізм видалення пилу з плоским дном.

Input voltage of the solenoid valve: DC 24 V, current: 0.8 A-1A , working environment: -10 degree -50 degree , relative humidity Less than or equal to 85 percent , working media: clean air, working pressure of air source: 0.5 MPa -0.7Mpa.

Working voltage of the airlock shall be AC 380 (1±5 percent ) V, and the material shall not be mixed with fiber impurities and big solids.

Air source pressure for dust removal shall be {{0}}.5 MPa-0.7MPa, if used in special case, the pressure can be lower than 0.5MPa;

Resistance of dust collector: P＜1.2Kpa;

Efficiency of dust collector: η Greater than or equal to 99.5 percent ;

Filtering air speed:  Less than or equal to 4 (m/min);

Specification of filtering sleeve: Φ1401600, Φ1402000, Φ1402400 (mm)

Operating principle and features of main components

Upper box

The upper box is a component for collecting filtered clean air, completed with an air outlet on the top, and includes an air jet device in it. When opening the top cover of upper box, the air jet device can be checked and replaced (it is unnecessary normally).

Middle box

Middle box is a component for filtering the incoming dust-containing air and also for settling the large dust particles; the top is connected with the upper box, the lower is connected with the lower box, and there is a filtering sleeve device in it. There is an inspection door on the box, which can be opened to inspect and replace the filtering sleeve.

Lower box (flat bottom —— lower box, conic bottom ——bunker)

The lower box is the component for discharging dust and equipped with a dust discharging device in it. The lower part has a dust outlet that is connected with the airlock. There is a manhole at the side of the lower box and is used for inspecting the dust discharging device and adding lubrication oil when opening it. Dust is discharged through a conic bunker by means of gravity of dust, so that the dust can be collected along the conic surface and discharged.

Технічні параметри
